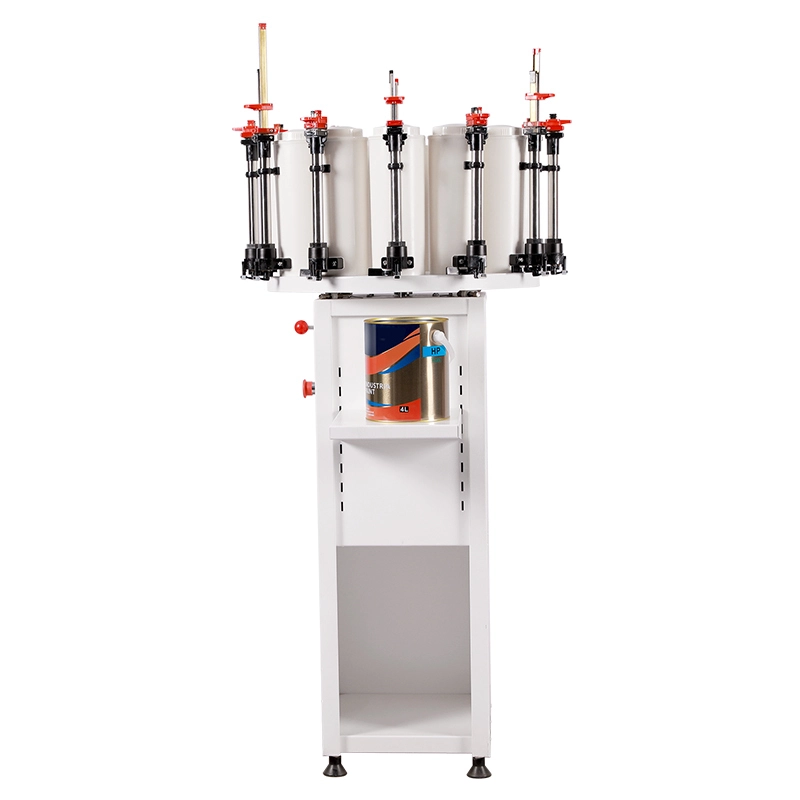

Manual Paint Tinting Dispenser Machine accuracy & repeatability JY-20B
Model: JY-20B
12 canisters, 14 canisters, 16 canisters, 20 canisters
12 canisters, 14 canisters, 16 canisters, 20 canisters
Main Features
Double-pump and double-gauge ensures stability of accuracy and repeatability.
Automatic blending of rotating blades ensures equal distribution of colorant and no deposition.
Colorant tray can automatically rotate fix brings more convenience for operation.
Manual control interior case support can be moved up and down easily, which provides enough space for paint dispensing.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our advantages
Detailed information
● All canisters with double pumps and double gauges;
● Automatic stirring with blades in canisters drived by motor in ground desk.
● Manual dispensing on upper part carousel.
● FOB Shenzhen(Container Loading Port) unit price: EXW + US$330.0.
● We can also quote prices based on CIF/ CFR upon buyer's destination port, and prices based on DDP/ DDU(door to door), according buyer's detailed receiv ing address.
● Automatic stirring with blades in canisters drived by motor in ground desk.
● Manual dispensing on upper part carousel.
● FOB Shenzhen(Container Loading Port) unit price: EXW + US$330.0.
● We can also quote prices based on CIF/ CFR upon buyer's destination port, and prices based on DDP/ DDU(door to door), according buyer's detailed receiv ing address.
Features
(1) Double-pump and double-gauge ensures stability of accuracy and repeatability.
(2) Automatic blending of rotating blades ensures equal distribution of colorant and no deposition.
(3) Colorant tray can automatically rotate fix brings more convenience for operation.
(4) Manual control interior case support can be moved up and down easily, which provides enough space for paint dispensing.
(2) Automatic blending of rotating blades ensures equal distribution of colorant and no deposition.
(3) Colorant tray can automatically rotate fix brings more convenience for operation.
(4) Manual control interior case support can be moved up and down easily, which provides enough space for paint dispensing.
Technical data
|
Application |
Water colorant/pigment (1 to 20 types) |
Working power |
110V60Hz, or 220V/50Hz; Power supply: 40W(12/14 canisters) 60W(16/20 canisters) |
|
Canister |
2.3L PP plastic canisters |
Net weight |
80KG; Gross weight: 110Kgs (with 16pcs canisters) |
|
Max discharge per time |
2 fluid ounce (55ml) |
Machine size |
1350 (H) X 860 (W) X 860 (D) mm (with 16pcs canisters) |
|
Accuracy |
0.1ml (milliliter) |
Packing size |
16 & 20 canisters machine: 80 * 55 * 116cm ; 12 &14 canisters machine: 76 * 55 * 116cm |
Free spare parts
|
Red dispense handle 2pcs |
Socket 4pcs |
Crooked wrest 3pcs |
Air-logged 4pcs |
|
Plastic cover 4pcs |
Fluid Exit mouth 4pcs |
Hexangular key 3pcs in 3sizes |
|
Remarks
1. Price above is based on EXW-Jingyi factory and valid for 2(two) weeks since you get.
2. Shipping charge, Insurance charge and any other cost depends on different trade terms.
3. User mannual and components spare parts include.
4. Should any question, please contact us for further solution(s).
