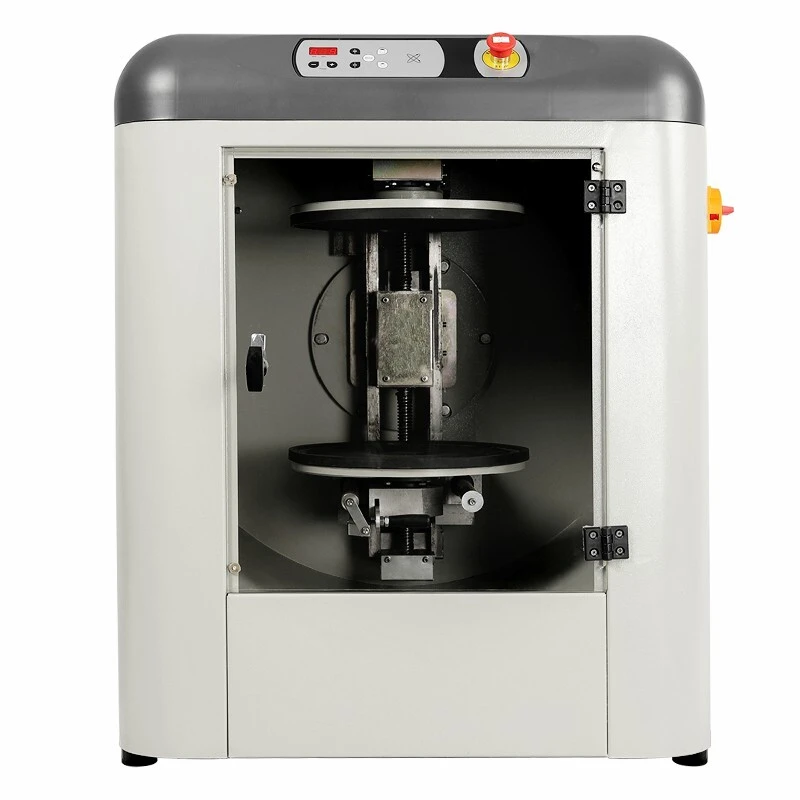

Automatic clamping Gyroscopic rotary Paint Mixer JY-30A
Model: JY-30A
Main Features
Main Features
Start self-checking program automatically before operation. In case of any abnormality, the controller will activate alarm through digital display and buzzer will sound.
Automatic clamping fixture, reduce time and release hand work.
Gyroscopic rotary in Revolution and Rotation. Widely used in paint, ink, coating and chemical powder mixing, different size drums acceptable.
LG inverter installed for automatically recognition on clamp force and different drum size, smart mixing speed.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Product Model No. |
JY-30A |
Mixing Time |
2~30min(Standard) /60minutes |
|
Drum inner capacity |
0.5~20L |
Mixing direction |
720 degrees |
|
Drum capacity |
1~30Kgs |
Clamp |
Automatic |
|
Revolution speed |
60r/min~200r/min |
Open |
Automatic |
|
Rotation speed |
120r/min~400r/min |
Speed driver |
LG inverter |
|
Drum Diameter |
Ø70~320mm |
Mixing Speed |
100r/Min for big drum; |
|
Drum height |
70~390mm |
Drum tray |
Changeable for different size |
|
Working Voltage |
110V/60Hz, 220V/50Hz (±10% ) |
Inner lock |
Machine working protection |
|
Power consumption |
750W Max |
Door lock |
Safe lock anti door opening |
|
Net weight |
190Kgs |
Error alarm |
Easy problem reminder |
|
Gross Weight |
220Kgs |
Bottom feet |
Foot master caster |
|
Product dimension |
860(L)X710(W)X1010(H)mm |
Top cover |
Easy open, Blue or Red option |
|
Packing Size |
L900XW800XH1200mm |
Warranty: 1 Year |
Q'ty: 28sets in a 20' container |
Remarks:
1. The price can on EXW factory and FOB Shenzhen, valid for 2(two) weeks. CIF, CFR, DDP/DDU is available.
2. Shipping charge, Insurance charge and any other cost depends on different trade terms.
3. User mannual and components spare parts include.
4. Please advise us which machine mixing time you need:standard 2~30minutes or 2~60mintues.
5. Should any question, please contact us for further solution(s).
