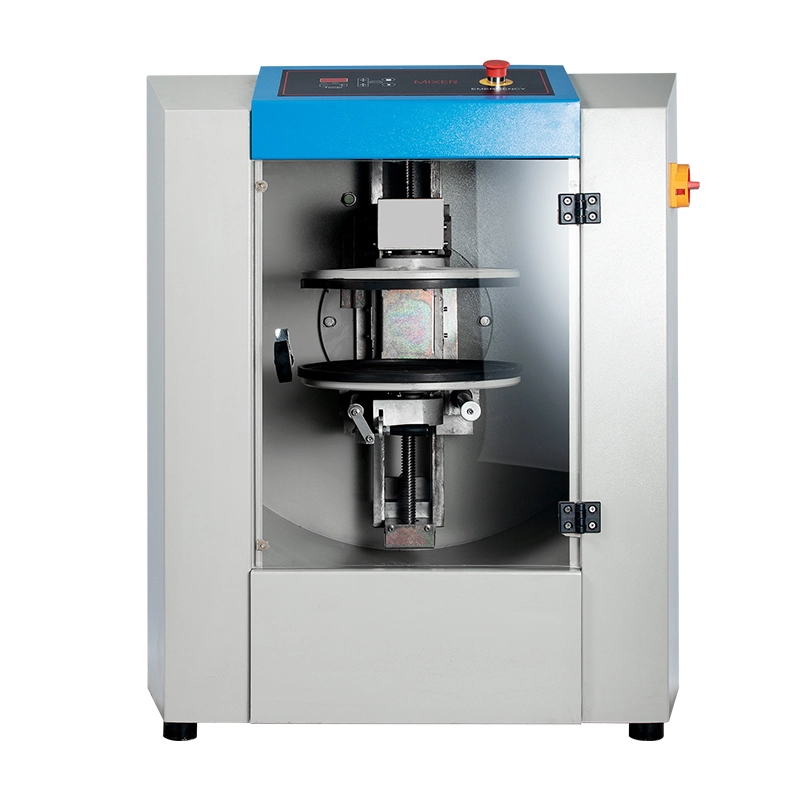

Automatic alternate Gyroscopic rotary Paint Mixer Machine JY-30A3
Model: JY-30A3
Main Features
Main Features
Gyroscopic alternate rotary. Make the paint mixture blend faster and more evenly.
Automatic clamping fixture, reduce time and release hand work.
Start self-checking program automatically before operation. In case of any abnormality, the controller will activate alarm through digital display digital and buzzer will sound.
LG inverter installed for automatically recognition on clamp force and different drum size, smart
mixing speed. Standard machine configuration already contains a Aluminum alloy tray and a Rubber plate.
Widely used in paint, ink, coating and chemical powder mixing, different size drums acceptable.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Product Model No. |
JY-30A3 |
Mixing Time |
2~30min(Standard)/60minutes |
|
Drum inner capacity |
0.5~20L |
Mixing direction |
720degrees |
|
Drum capacity |
1~30Kgs |
Clamp |
Automatic |
|
Revolution speed |
60r/min~200r/min |
Open |
Automatic |
|
Rotation speed |
120r/min~400r/min |
Speed driver |
LG inverter |
|
Drum Diameter |
Ø70~320mm |
Mixing Speed |
100r/Min for big drum/ 200r/Min for small drum |
|
Drum height |
70~390mm |
Drum tray |
Changeable for different size |
|
Working Voltage |
110V/60Hz,220V/50Hz±10% |
Inner lock |
Machine working protection |
|
Power consumption |
750WMax |
Door lock |
Safe lock anti door opening |
|
Net weight |
190Kgs |
Error alarm |
Easy problem reminder |
|
Gross Weight |
230Kgs |
Bottom feet |
Foot master caster |
|
Product dimension |
830(L)X740(W)X1060(H)mm |
Top cover |
Easy open, Blue or Red option |
|
Packing Size |
L900XW800XH1200mm |
Warranty: 1Year |
Q'ty: 28setsina20'container |
Remarks:
1.Price above is based on EXW JingYi factory, valid for 2(two) weeks. FOB/ CIF/CFR/DDP/DDU prices are available.
2.Shipping charge, Insurance charge and any other cost depends on different trade terms.
3.User manual and components spare parts include.
4.Please advise us which machine mixing time you need: standard 2~30 minutes or 2~60mintues
5.Should any question, please contact us for further solution(s).
product Specifications
Product Details
202307130918082 拷贝 (2)
202307130918085 拷贝 (2)
GC1A3796 拷贝
photobank 拷贝 (8)
Product Application
0a4f207331cc694b5790f101a3bc3b60
4cdced3d84d3e19f6d3ae48639c410d8
7b068e94af43fcdc7708474e364f35c1
Quotation
Aluminum tray for Automatic clamping Gyroscopic Alternate Rotary Paint Mixer Machine Standard machine configuration already contains this Aluminum alloy tray + Rubber plate
Extra Spare parts priceUS$140.00/pc(EXW)
Automatic clamping Gyroscopic Rotary Paint Mixer Machine Standard machine configuration not include this Nylon fixture. Shape and dimesion of this Nylon fixture can be mabe as your detailed requirements.
PriceUS$186.00/pc(EXW)
