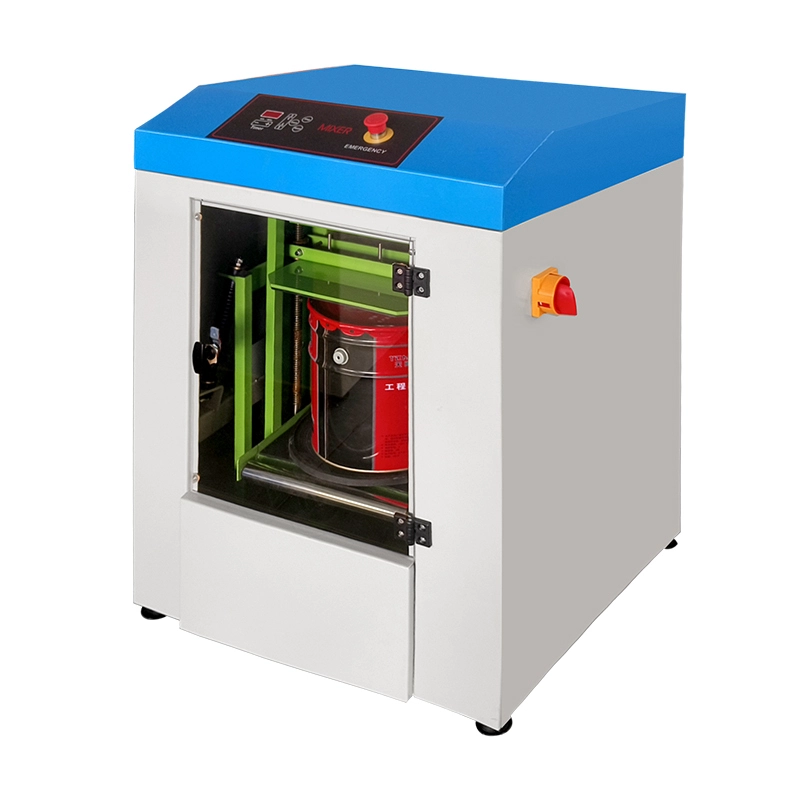

Automatic clamping Paint Shaker different size drums JY-30C2
Model: JY-30C2
Main Features
Main Features
This machine is automatically controlled by new type alarm time -setter. When the working time of machine reaches the set time, it will stop automatically and the alarm will sound.
Automatically clamping after put the paint drum/bucket onto the buttom holder/tray.
The machine will stop automatically when the door is opened due to excellent safety and features.
High-speed shaking action-mixes most paints in at most 30 seconds.
Large door and the front roller are easy for the can load in.
Widely used in paint, ink, coating and chemical powder mixing, different size drums acceptable.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Product Model No. |
JY-30C2 |
Shaking time |
5~120mintuesbyPLCcontrol |
|
Drum inner capacity |
1~20L |
Mixing direction |
Up and down, forward and backward |
|
Drum weight capacity |
1~30Kgs |
Clamp |
Automatically |
|
Shaking frequency |
680t~710t/Min |
Open |
Automatically |
|
Rotation speed |
1400r/min |
Drum tray |
Changeable for different size |
|
Max drum Diameter |
Ø70~360mm |
Inner lock |
Machine working protection |
|
Drum height |
80~390mm |
Door lock |
Safe lock anti door opening |
|
Working Voltage |
110V/60Hz / 220V/50Hz |
Door window |
Transparent Acrylic/ OEM support |
|
Power consumption |
750W Max |
Error alarm |
Easy problem reminder |
|
Net weight |
200Kgs |
Bottom feet |
Foot master caster |
|
Gross Weight |
220Kgs |
Top cover |
Blue or Red option |
|
Product dimension |
820(L)X750(W)X950(H)mm |
Warranty |
1 Year |
|
Packing Size |
900(L)X800(W)X1200(H)mm |
Q'ty Loading |
28pcs in a 20' container |
Remarks:
1. Price above is based on EXW-Jingyi factory and FOB Shenzhen, valid for one month only.
2. Shipping charge, Insurance charge and any other cost depends on different trade terms.
3. User mannual and components spare parts include.
4. Should any question, please contact us for further information and solution(s).
