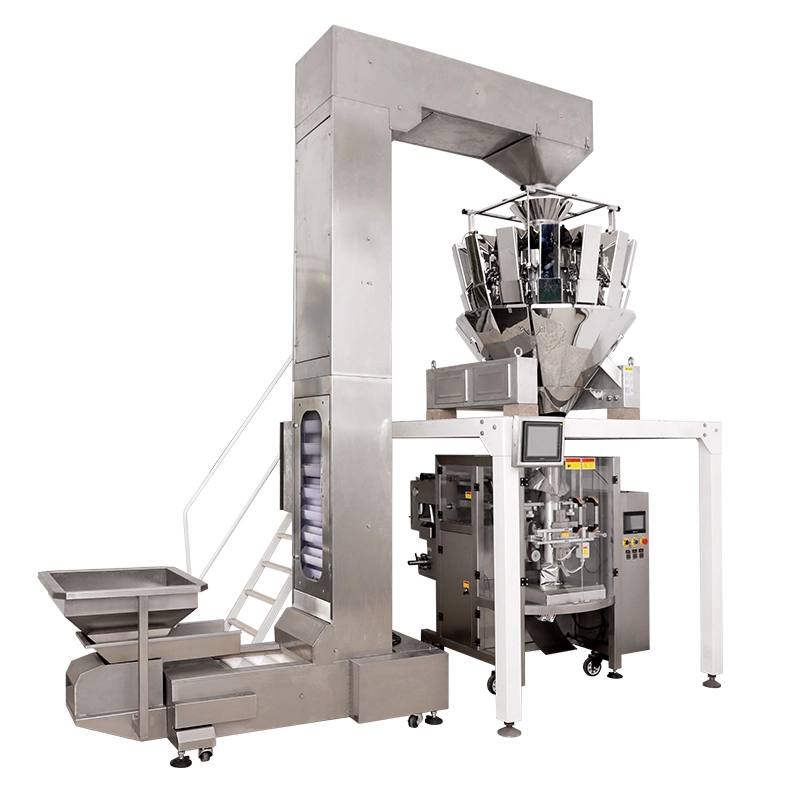

Ration Weighing And Packing System Specialist - Jingyi Weigher
Features
Based on different materials and different sizes of bags, select the most suitable equipment combinations.
PLC controller, HMI system, Data setting on the touch screen.
Easy to adjust: All working process in one station, more easily adjusting.
Frequency control: Speed can be adjusted by frequency conversion within the range.
High Automation: Unmanned in weighing and packing process, machine alarm automatically when failure.
The fully automatic and contactless packaging process significantly enhances the packaging speed, weight accuracy, food quality and safety.
Include the following
Work Process
1. Material feeding.
2. Weighing for materials.
3. Bag Making and filling materials.
4. Date printing.
5. Vibration, Air removal, Inject nitrogen, Inject liquid.
(Customize according to requirements)
6. Heat Sealing.
7. Product Output.
8. Choose the Metal detector, Check weigher, Rotary table etc. according to your needs.
Z-Shaped automatic Material Elevator
(As shown in the figure below: Support customization of different heights and inclinations)
Product parameters
The conveyer is applicable for vertical or inclinations lifting of grain material in departments such as corn, food, small metal piece, small plastic, fodder and chemical industry, etc.
For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical or inclinations feeding of grain or small block material. It has advantages of large lifting quantity and highness.
|
The height of lifting |
330cm |
|
Speed of lifting |
0-17m/minute; lifting quantity: 55cubic meter/hour |
|
Power |
550W |
|
Voltage |
220V |
|
Size |
3066x435x3300mm |
Product Details
Product Application
Automatic multihead weigher
(For different products, the multihead weigher can be of different models)
Main Features
VFFS Packing machine
(Select the packaging machine based on the size of the bag)
The major performance and structural feature
Technical parameter for 520 packing machine
|
Packing speed |
5-50 bag/min |
Thickness of film |
0.04-0.08mm |
|
Bag size |
(L)50-400mm (W)250mm |
Air consumption |
200L/min 0.7×105Pa |
|
Bag making mode |
Pillow-type bag, standing bag, punch |
Main power/voltage |
2.2KW/220V 50-60Hz |
|
Range of measuring |
150-1300ml |
Dimension |
1400×970×1600mm |
|
The maximum width of packing film |
520mm(The maximum width of the bag is 250)（The other width of the bag should be customized by other former） |
Gross weight |
450kg |
Finished Product Conveyor
The machine can send the packed finished bag to after-package detecting device or packing platform.
|
|
Feeding speed |
30m/minute |
|
Dimension |
2110×340×500mm |
|
|
Voltage |
220V/45W |
|
|
Packing size |
164x45x53cm |
|
|
Net weight |
40kg |
|
|
Gross weight |
50Kg |
