Ration Weighing And Packing System Specialist - Jingyi Weigher

Automatic Doypack Premade Bag Packing Machine (Main machine) 1
Automatic Doypack Premade Bag Packing Machine (Main machine) 2
Automatic Doypack Premade Bag Packing Machine (Main machine) 3
Automatic Doypack Premade Bag Packing Machine (Main machine) 1
Automatic Doypack Premade Bag Packing Machine (Main machine) 2
Automatic Doypack Premade Bag Packing Machine (Main machine) 3

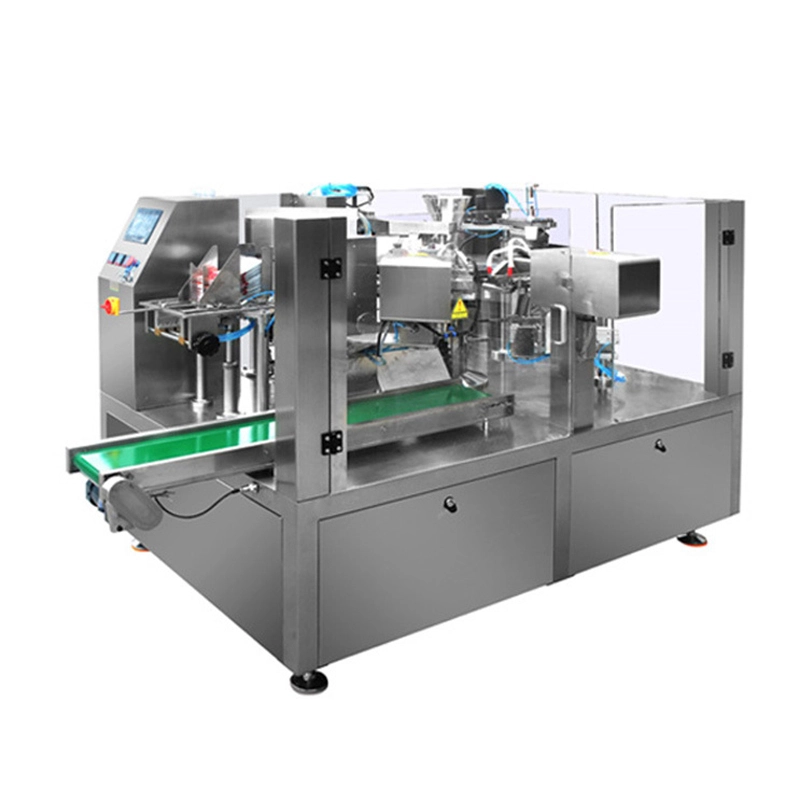

Automatic Doypack Premade Bag Packing Machine (Main machine)

Suit for: Premade flat pouches, stand-up pouches, zipper pouches, gusset pouches and pouches with corner spouts, hanging hole bag, nozzle bag, etc.
Parameter

Max. Speed: 35-55 bags/min (Depends on material character)
Voltage: 220V/380V/110V
Max Packing volume: 5000g
Dimension: 2200×2800×2000mm
Air consumption: ≥0.6m3/min-1.2m3/min
Sealing temperature:100-190Cº
The type of bag opening: Use auto sucker to open the bags.

    oops...!

    no product data.

    Go to homepage

    Technical Features

    The premade bag rotary packaging machine must be equipped with an intelligent weighing or quantify system. It is made of food-safe 304 stainless steel material. The precise measuring cylinder measures accurately, with fast speed, stable operation, low defective rate, low noise, safe food filling material, good sealing performance, and convenient operation.


    Automatic Doypack Premade Bag Packing Machine (Main machine) 4 Suit for: Premade flat pouches, stand-up pouches, zipper pouches, gusset pouches and pouches with corner spouts, hanging hole bag, nozzle bag, etc.


    Automatic Doypack Premade Bag Packing Machine (Main machine) 5 Applicable to: It can be used for filling and sealing varieties of applications such as wheat flour, sugar, rice, detergent, Shampoo and grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips, raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables, fruits, sea food, frozen food, small hardware, etc.

    1c

    Detail illustration

    1 (6)
    Touch screen
    Packing speed, capacity, bag length, temperature etc. All setting and display by touch screen.
    2 (5)
    8 stations workflow
    Eight-work station running to make each station work stable.
    3 (4)
    Take the bag and deliver the bag
    The operation is fast and the accuracy rate is 98%.
    4 (5)
    Open bag device
    The suction cup and the prying tool can quickly opened the bag.
    5 (3)
    Sealing device
    Adjustable temperature, hole-making capability.
    6 (3)
    Date printer
    To print the manufacturer expire date, can print up to 4 lines.
    7 (3)
    Variable-frequency speed control motor
    Set the production speed as needed.
    8 (2)
    Finished product conveyor
    Deliver the finished product packing one by one.

    Product Details

    微信图片_20250925154321_70_190 拷贝
    微信图片_20250925154321_70_190 拷贝
    微信图片_20250925154327_73_190 拷贝
    微信图片_20250925154327_73_190 拷贝
    微信图片_20250925154331_74_190 拷贝
    微信图片_20250925154331_74_190 拷贝
