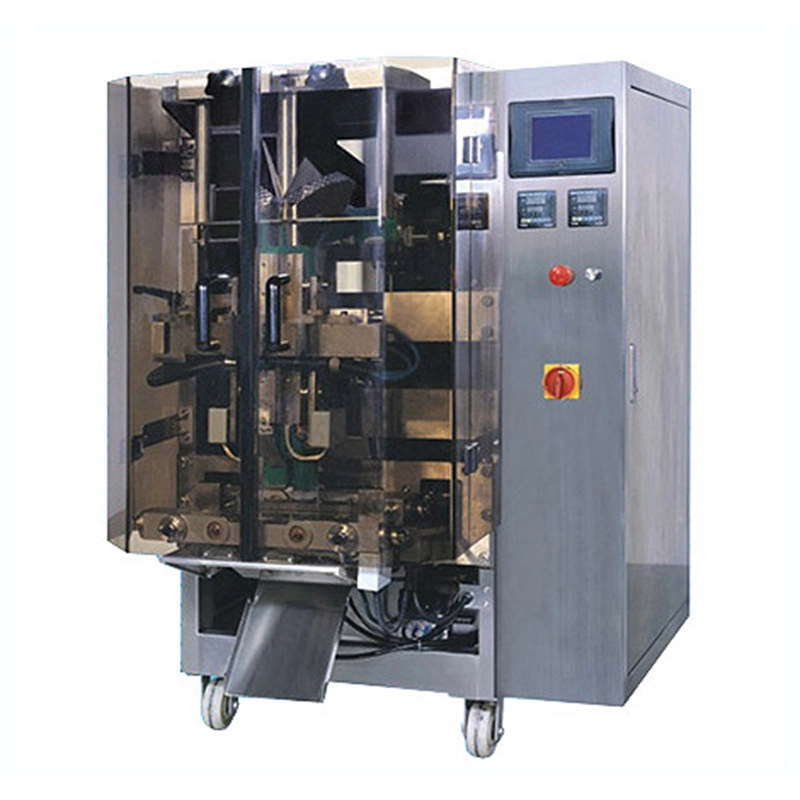

Automatic Vertical Packing Machine Dual-language touch screen
(We can customize it according to your requirements.)
Main Features
Main Performance and Structural Characteristics Dual-language touch screen display, intuitive and simple operation.
PLC computer control system, more stable operation, and parameters can be adjusted without stopping.
Can store ten sets of parameters, easier to change varieties.
Use servo motor for film pulling, more accurate positioning.
Independent temperature control system, accuracy up to ±1℃.
Independent control of horizontal and vertical sealing temperatures, better suitable for various composite films, PE films and other packaging materials.
Various packaging styles, such as back sealing, angle insertion, bag connection, punching, etc.
Complete production of bag making, sealing, packaging and date printing in one step.
Quiet working environment, low noise.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Range of configuration
Compatible with multiple measuring devices (select different measuring devices to package different types of products).
The machine can be supported by auto weighing machine, meter glass dosing machine, manual batch conveyor and spiral dosing machine.
Applicable to: liquid packaging, food packaging, small hardware packaging, pharmaceutical packaging, such as expanded food, shrimp sticks, peanuts, popcorn, cereal, peanuts, jelly, sugar, salt, laundry detergent, etc. for granular, strip-shaped, short strip-shaped, or powder-like materials.
Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat-sealing film.
Please confirm the style of the bag before the order. Such as pillow bag, gusseted bag, flat bottom bag and the bag with holes and so on.
JY-320 Vertical Packing Machine
|
JY-320 |
Specifications |
|
|
|
Packing speed |
5-50bags/min |
|
Bag size |
(L)50-200mm |
|
|
Range of measuring |
50-800ml |
|
|
The maximum width of packing film |
320mm |
|
|
Thickness of film |
0.04-0.08mm |
|
|
Air consumption |
300L/min0.65mpa,105Pa |
|
|
Main power/Voltage |
Single phase 220V,50HZ/2.2KW |
|
|
Dimension |
(L)970mm×(W)910mm×(H)1000mm |
|
|
Weight |
200kg |
|
JY-420 Vertical Packing Machine
|
JY-420 |
Specifications |
|
|
|
Packing speed |
5-50bags/min |
|
Bag size |
(L)50-300mm |
|
|
Range of measuring |
150-1300ml |
|
|
Bag making mode |
Pillow-type bag, standing bag, punching device |
|
|
The maximum width of packing film |
420mm |
|
|
Thickness of film |
0.04-0.08mm |
|
|
Air consumption |
300L/min0.7mpa.105Pa |
|
|
Main power/Voltage |
Single phase 220V.50HZ/2.2KW |
|
|
Dimension |
(L)1400mm×(W)970mm×(H)1600mm |
|
|
Weight |
400kg |
|
JY-520 Vertical Packing Machine
|
JY-520 |
Specifications |
|
|
|
Packing speed |
5-50bags/min |
|
Bag size |
(L)80-350mm |
|
|
Range of measuring |
2000ml(most) |
|
|
Bag making mode |
Pillow-type bag, standing bag, punching device |
|
|
The maximum width of packing film |
520mm |
|
|
Thickness of film |
0.04-0.08mm |
|
|
Air consumption |
300L/min0.7mpa.105Pa |
|
|
Main power/Voltage |
Single phase 220V.50HZ/2.2KW/ |
|
|
Dimension |
(L)1430mm×(W)1200mm×(H)1700mm |
|
|
Weight |
450kg |
|
JY-620 Vertical Packing Machine
|
JY-620 |
Specifications |
|
|
|
Packing speed |
5-50bags/min |
|
Bag size |
(L)80-400mm |
|
|
Range of measuring |
2500ml(most) |
|
|
Bag making mode |
Pillow-type bag, standing bag, punching device |
|
|
The maximum width of packing film |
620mm |
|
|
Thickness of film |
0.04-0.08mm |
|
|
Air consumption |
300L/min0.7mpa.105Pa |
|
|
Main power/Voltage |
2.2KW/220V.50HZ |
|
|
Dimension |
(L)1430mm×(W)1300mm×(H)1700mm |
|
|
Weight |
490kg |
|
Detailed description
Human-machine interface display
Dual-language touch screen display, intuitive and simple operation. PLC computer control system, more stable operation, and parameters can be adjusted without stopping. Daily operations and maintenance can be carried out through the touch screen. Can store ten sets of parameters, easier to change varieties.
Loading film component
The servo motor and the loading film component drive the arm to move up and down, thereby achieving dynamic control of the membrane tension. Sensors detect the length of the moving film, enabling precise tracking and positioning of the film.
Bag former
The packaging film and the bag former must be smooth and consistent to achieve a beautiful and neat appearance. Different film widths require different bag former. We can customize multiple bag former for use on one packaging machine according to the size of the bags.
Sealing clamp
The servo-controlled opening and closing movement of the sealing clamp mouth features independent temperature control, heating and sealing. The sealing clamp will seal the top of one bag and the bottom of another bag at the same time. Cut it apart in the middle. This completes the production of the pillowcase bag.
Product Application
包装机420-主图7 拷贝
整套组合秤-详情1_07 拷贝
Product Details
520b 拷贝
520c 拷贝
